STANDARD SCREW

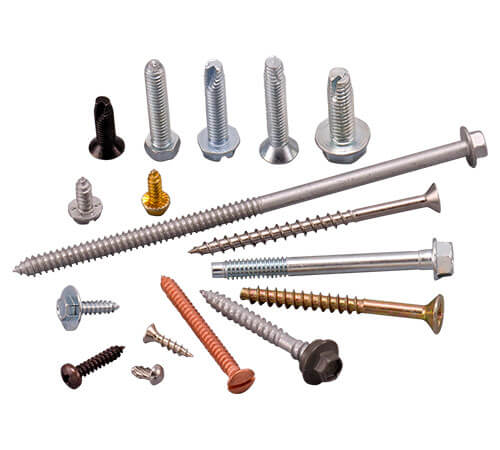

SHEET METAL SCREW / SELF TAPPING SCREW
-
Size
Thread #2~#14 (M2.2~M6.3)
Length 3/16"~8" (5mm~200mm)
-
Head Type
Pan head, Flat Countersunk head, Oval head, Truss head, Ind. Hex Washer head, Hex head, Round head, Fillister head, Button head...
-
Recess
Phillips, Pozi, Slot, Square, Torx, Combo...
-
Thread Type
Type A, Type AB, Type B,Type F,Type 25,Type C,Type 1,Type 23,Type17
-
Point
Cone point, Blunt point, Header point, Dog point...

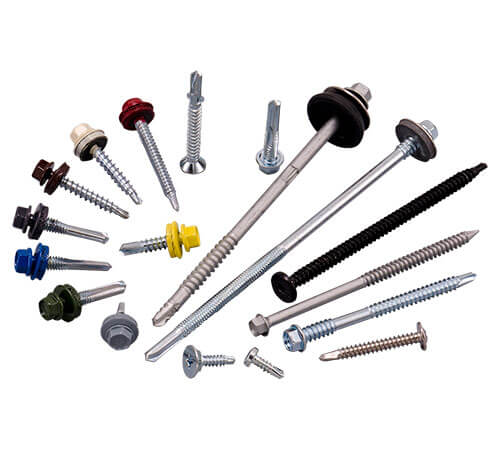

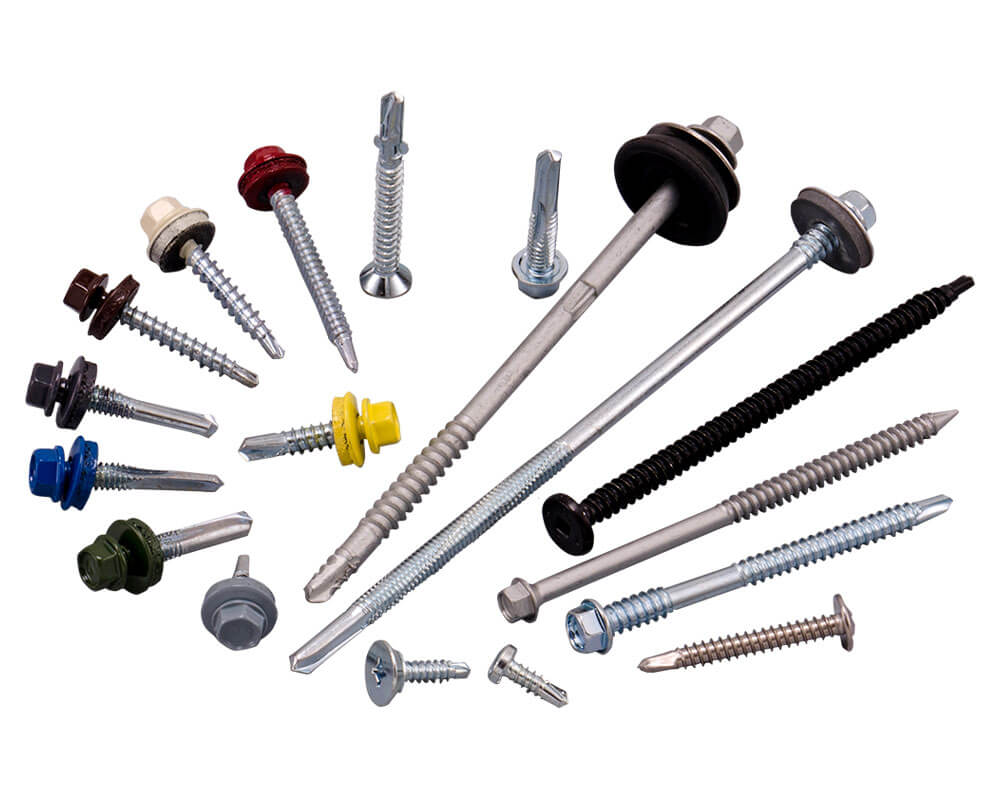

Self Drilling Screw
-
Size
Thread #4~#14 (M2.9~M6.3)
Length 3/8"~12" (9.5mm~300mm)
-
Head Type
Pan head, Flat Countersunk head, Oval head, Modified Truss head, Ind. Hex Washer / Flange head, Hex head...
-
Recess
Phillips, Pozi, Torx, Slot, Square, Combo...
-
Thread Type
ASD, BSD, CSD
-
Point
#1 reduced point, #2~#5 drill point, drill point with two wings..

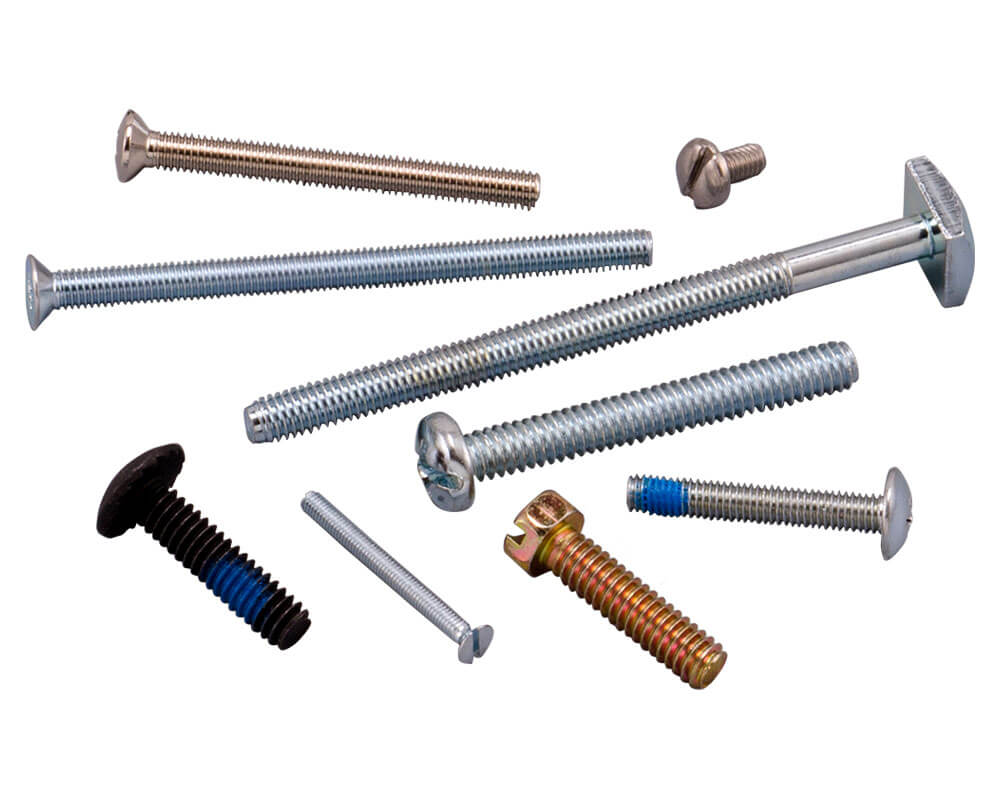

Machine Screw
-
Size
Thread #2 ~ 3/8 (M2 to M10)
Length 1/8"~8" (3mm~200mm)
-
Head Type
Pan head, Flat Countersunk head, Oval head, Truss head, Ind. Hex Washer head, Hex head, Round head, Fillister head, Button head, Cheese head..
-
Recess
Phillips, Pozi, Torx, Slot, Square, Combo...
-
Thread Type
UNC, UNF, Metric Coarse thread, Metric Fine thread...
-
Point
Header point, without chamfered end

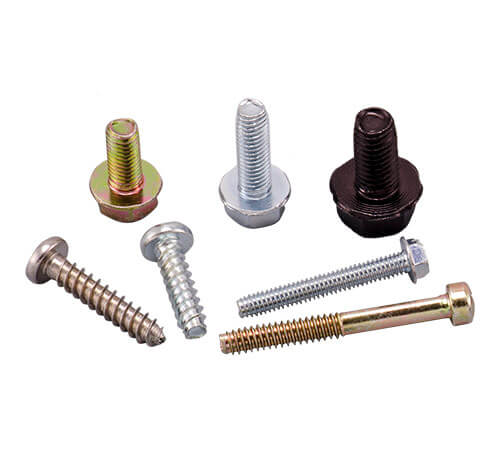

THREAD ROLLING SCREW
-
Size
Thread #2 ~ 3/8 (M2 to M10)
Length 1/4"~4" (6mm~100mm)
-
Head Type
Pan head, Flat Countersunk head, Oval head, Truss head, Ind. Hex Washer head, Hex head, Round head, Fillister head, Button head...
-
Recess
Phillips, Pozi, Torx, Slot, Square, Combo...
-
Thread Type
single lead 60° tri-lobe thread (type TT), single lead 45° tri-lobe thread, twin lead 48° tri-lobe thread, twin lead 60° tri-lobe thread...
-
Point
Taper point, Gimlet point..

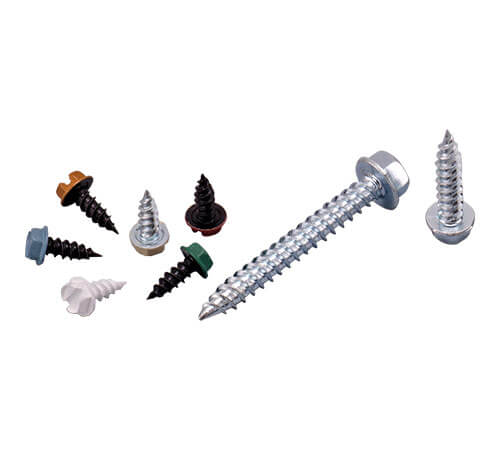

Self Piercing Screw
-
Size
Thread #6 ~ #14 (M3.5 to M6.3)
Length 1/2"~2" (12mm~50mm)
-
Head Type
Ind. Hex Washer head, Modified Truss head
-
Recess
Phillips, Pozi, Slot, Square, Combo...
-
Thread Type
fine thread and twin lead
-
Point
Streaker point

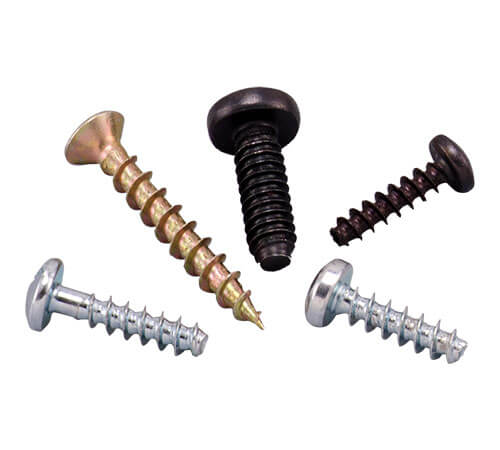

Plastic Screw
-
Size
Thread M2 to M10
Length 3mm~80mm
-
Head Type
Pan head, Flat Countersunk head, Oval head, Modified Truss head, Ind. Hex Washer head, Hex head, Round Washer head, Pan head with collar...
-
Recess
Phillips, Pozi, Torx, Slot, Combo...
-
Thread Type
30 degree thread wave root, 30 degree thread flat root...
